Cisco 2621

Product Overview

The Cisco 2600 Series Multiservice Platform is a modular multiservice access router that provides flexible LAN and WAN configurations, multiple security options, and a range of high-performance processors. With more than 70 network modules and interfaces, the modular architecture of the Cisco 2600 Series allows interfaces to be easily upgraded for network expansion.

The Cisco 2600 Series shares modular interfaces with the Cisco 1600, 1700, 3600 and 3700 series routers, providing network managers and service providers a cost-effective solution to meet branch office needs, including:

• Internet and intranet access with firewall security
• Multiservice voice and data integration
• Analog and digital dial access services
• VPN access
• Inter-VLAN routing
• Routing with bandwidth management
• Integration of flexible routing and low-density switching


The Cisco 2600 series features single or dual fixed LAN interfaces, a network module slot, two Cisco WAN interface card (WIC) slots, and a new Advanced Integration Module (AIM) slot. LAN support includes single and dual Ethernet options; 10/100 Mbps auto-sensing Ethernet; mixed Token-Ring and Ethernet; and single Token Ring chassis versions. WAN interface cards support a variety of serial, ISDN BRI, and integrated CSU/DSU options for primary and backup WAN connectivity, while available network modules support multi-service voice/data/fax integration, departmental dial concentration, and high-density serial options. The AIM slot supports integration of advanced services such as hardware-assisted data compression and encryption. All Cisco 2600 series routers include an auxiliary port supporting 115Kbps Dial On Demand Routing, ideal for back-up WAN connectivity.

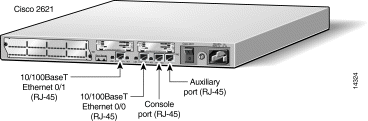

The physical interfaces include power plug for the power supply and a power switch. The router has two Fast Ethernet (10/100 RJ-45) connectors for data transfers in and out. The module also has two other RJ-45 connectors on the back panel for a console terminal for local system access and an auxiliary port for remote system access or dial backup using a modem. The 10/100Base-T LAN ports have Link/Activity, 10/100Mbps, and half/full duplex LEDs.
