Planet VDL-2420MR VDSL2 DSLAM

Planet Technology VDL-2420 VDSL2 DSLAM

Planet Technology 24 Port VDSL 2 DSLAM VDL-2420MR / VDL-2420MR48
VDL-2420MR / VDL-2420MR48

Click to download the Datasheet
  Call 800-362-3770 for Pricing & Availability

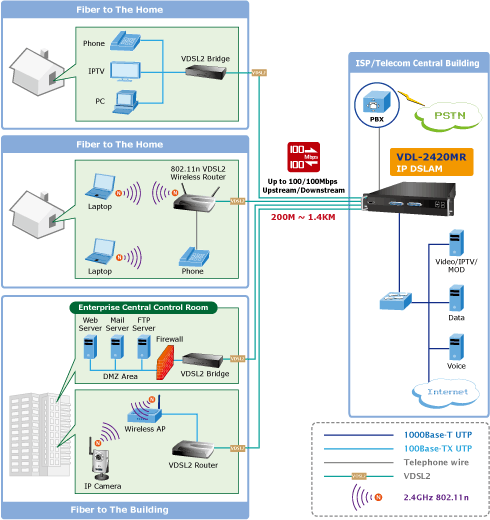

Perfectly Designed for FTTx Last Mile Applications
The PLANET VDL-24240MR series is a telecom-level high performance VDSL2 IP DSLAM (Digital Subscriber Line Access Multiplexer) with 24-Port VDSL2, 2-Port Gigabit TP / SFP combo interfaces, Hot-Swappable AC/DC Redundant Power System and robust Layer 2+ switching features. The VDL-2420MR series is fully compliant with the ITU-T G.993.2 standard and supports VDSL2 30a profiles to offer maximum download and upload line rate up to 100/100Mbps on the existing twisted pair lines. The VDL-2420MR helps service providers to easily provide high bandwidth demanded triple-play services such as IPTV, HDTV, Video Phone and Internet Gaming at the same copper line and uplink to the core / metro Ethernet network through the two Gigabit fiber optical interfaces. It is an ideal CO solution for FTTx Last Mile applications of broadband access by ISPs, Telecoms and campuses.

Comprehensive and Advanced VDSL2 Configuration
For the bandwidth and distance of broadband access, the VDL-2420MR VDSL2 IP DSLAM supports multiple selective VDSL2 profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a) and 997/998 Band plan to each subscriber line. To help the ISPs provide always on internet access service in different physical line installation environments, the VDL-2420MR supports configurable DPBO (Downstream Power Back-Off) and UPBO (Upstream Power Back-Off) to adjust the downstream / upstream transmit power levels for service provider to reduce the interference by nearby wires. Furthermore, it can be configured on a per-link basis for transmission mode, rate limitation and SNR (signal-to-noise) margin. These advanced VDSL2 functionalities help service providers to adjust the line performance to ensure the VDSL2 service not be impacted by other xDSL services in the same binder group and building a stable and reliable IP DSLAM solution.

High Speed Connectivity for ISP / Triple Play Devices
As the demand of broadband connections increases for home-communication and entertainment needs, VDSL2 technology is the next step media to support the integration of home services and provide significant faster transmission speed than current cable modems and ADSL technology. The VDL-2420MR series applies the EoVDSL (Ethernet over VDSL) to provide up to 100Mbps download capability and brings many Multi-Media services come true on local network:

  • IPTV / HDTV
  • VOD (Video on Demand)
  • Voice over IP
  • Video Conference / Video Phone
  • On-Line Game
  • Internet Radio / On-Line Music
  • Long distance education

The VDL-2420MR series gives the excellent bandwidth to satisfy the triple play devices for home entertainment and communication.

Traffic Flow QoS Ensuring for Application Services
The VDSL2 DSLAM contains robust QoS features such as Port-Based, 802.1p priority and also IP TOS/DSCP. It guarantees the best performance at VoIP and Video stream transmission and empowers the enterprises to take full advantages of the limited network resources.

Efficient Management
Afford the current network to grow and expand, the PLANET VDL-2420MR series provides console and telnet command line interface, advanced WEB and SNMP management interface to fill this kind of demand. With its built-in Web-based management interface, the VDSL2 DSLAM offers an easy-to-use, platform-independent management and configuration facility. The VDSL2 DSLAM supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. For text-based management, the VDSL2 DSLAM can also be accessed via Telnet and the console port. Moreover, the VDL-2420MR series offers secure remote management by supporting Secure Socket Layer (SSL) connection which encrypts the packet content at each session. The features above provide an efficient way for the administrators to manage the devices from the internet environment with no need to add extra secure system either by means of hardware or software.

Robust Layer 2 Features
For efficient management, via WEB interface the VDL-2420MR series can be programmed for basic switch management functions such as port speed configuration, Port link aggregation, IEEE 802.1Q VLAN and Q-in-Q VLAN, Port Mirroring, Rapid Spanning Tree and ACL security. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control to enhance bandwidth utilization.

Advanced Security
The VDL-2420MR series offers comprehensive Layer 2, Layer 3 and Layer 4 Access Control List (ACL) to filter out unwanted traffic. Its protection mechanisms comprises of RADIUS and Port-Based 802.1X user and device authentication. Moreover, the VDSL2 DSLAM provides MAC filter, Static MAC, IP/MAC binding and Port Security for enforcing security policies to the edge. The administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Extremely Reliable Design to Ensure Continuous Operation
Power Redundant
The VDL-2420MR series supports the optional hot-swappable Redundant Power System (RPS) to ensure continuous operation. The VDL-2420MR equips with one 100~240V AC power supply unit and the VDL-2420MR48 equips with one DC -48V power supply unit on their standard package. To enhance the reliability, both the VDL-2420MR and VDL-2420MR48 provide one spare power supply unit slot for optional 100~240V AC or DC -48V redundant power supply installation. The continuous power systems are specifically designed to handle high tech facilities requiring the highest power integrity available. Also, the -48V DC power supply implemented makes the VDL-2420MR series VDSL2 DSLAM as a telecom level device that can be located at the electronic room.

Temperature and FAN Status Monitoring
The VDL-2420MR series is equipped with temperature sensor and cooling fans to ensure reliable operation. Whenever there is abnormal temperature detected or cooling fan service stops, the managed VDSL2 DSLAM would display related information on the Web management interface. Therefore, it helps the administrator to efficiently manage the managed VDSL2 DSLAM operation.


Applications



Perfect solution for Network Service Provider to offer broadband services
Co-work with various PLANET VDSL2 CPE product line, the VDL-2420MR series provides up to 100/100Mbps symmetric data rate within 300m and in long range connections. It offers the benefit of high performance to central office co-location and MTU (Multi-Tenant Unit) / MDU (Multi-Dwelling Unit) markets. It provides service of broadband data over existing copper wires without affecting the conventional voice service by 24 subscriber ports with built-in POTS splitter and long distance support through the two fiber optic uplink interfaces. The various distances of SFP (small-form factor) and Bidi (WDM) transceivers are optional for customers. The VDL-2420MR VDSL2 IP DSLAM is a great and ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Home) applications. It supports high bandwidth VDSL2 over existing telephone wires in the “last mile” from the ISP / Telecom / Service provider’s fiber node to the buildings and customers’ home with cost-effective and high-value central management capability.


VDL-2420MR / VDL-2420MR48

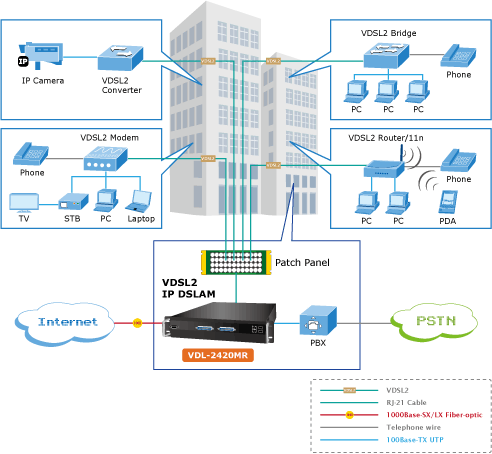

MTU / MDU / Hospitality Solution
IPTV, VOD and digital message broadcasting services are the worldwide hot trends, and more and more service providers have gradually upgraded the client side devices from analog system to digital system. The PLANET VDL-2420MR series VDSL2 CO Switch and VC-23x VDSL2 CPEs are the best solution to quickly provide cost-effective and high speed network services by utilizing the existing telephone wire infrastructure. IP network installation is straightforward and requires no extra wiring. With enough bandwidth, the 100/100Mbps symmetric capability of VDL-2420MR series enables many Multi-Media services on local Internet to come true, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, distance education, and so on. The VDL-2420MR series provides excellent bandwidth to satisfy the triple play devices for entertainment and communication. Meanwhile, this kind of infrastructure will minimize the burden on the Internet.


VDL-2420MR / VDL-2420MR48



Key Features


VDSL Interface
• 24 Full-Duplex VDSL links via RJ-21(Telco-50) connector
• 24 corresponding POTS lines via RJ-21(Telco-50) connector
• Built-in POTS splitter for each VDSL port
• Link to VC-231 / VC-234 / VC-230 / VC-230N CPE Bridge
• Auto-speed function for VDSL2 link (by distance and cable quality)

Ethernet Interface
• 2 10/100/1000Mbps TP and SFP shared combo interfaces
• Auto-MDI /MDI-X detection on Gigabit RJ-45 port

VDSL2 Features
• Cost-effective VDSL2 link and central management solution
• Compliant with VDSL2 standard
 - ITU-T G.993.2
 - ITU-T G-994.1
 - ITU-T G.997.1
• ITU-T G.993.2, 8a / 8b / 8c / 8d / 12a / 12b / 17a / 30a Profiles
• Configurable Line Template and Alarm Template
• Configurable UPBO / DPBO / US0 Allow / Virtual Noise PSD
• Configurable Bitswarp / G.hs carrier set / RFI Band
• Manual / RaInit / Dynamic Rate Adaption
• DMT (Discrete Multi-Tone) line coding VDSL
• Up to 100/100Mbps symmetric data rate
• Selectable target data rate and target SNR margin
• Built-in surge protection to against surge damage from high energy spike
• Voice and data communication can be shared on the existing telephone wire simultaneously
• Supports Downstream / Upstream rate control on each port

Layer 2 Features
• High performance of Store-and-Forward architecture, runt / CRC filtering eliminate erroneous packets to
 optimize the network bandwidth
• Broadcast / Multicast / Unicast storm control
• Supports VLAN
 - IEEE 802.1Q Tag-Based VLAN
 - Port-Based VLAN
 - Q-in-Q tunneling (VLAN Stacking)
 - GVRP for dynamic VLAN management
 - Private VLAN Edge (PVE / Protected port)
• Link Aggregation
 - IEEE 802.3ad LACP (Link Aggregation Control Protocol)
 - Cisco ether-channel (Static Trunk)
• Spanning Tree Protocol
 - STP, IEEE 802.1D (Classic Spanning Tree Protocol)
 - MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, Spanning Tree by VLAN)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
• PPPoE packet pass-through
• VPN pass-through

Quality of Service
• 4 priority queues on all switch ports
• Traffic classification
 - IEEE 802.1p CoS
 - IP TOS / DSCP to 802.1p priority mapping
 - Port-Based priority
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Voice QoS by application source / destination protocol no.

Multicast
• Supports IGMP Snooping v1 and v2
• IGMP Snooping v2 fast leave
• Querier mode support

Security
• IEEE 802.1x Port-Based network access control protocol
• RADIUS users access authentication
• L3 / L4 Access Control List (ACL)
• MAC Filtering and Source IP-MAC / Port-Binding
• Port Security for Source MAC address entries filtering

Management
• Switch Management Interface
 - Telnet Command Line Interface
 - Web switch management
 - SNMP v1, v2c, v3 switch management
 - SSL switch management
• DHCP client for IP address assignment
• DHCP Option82 and DHCP Relay
• SNTP (Simple Network Time Protocol)
• Built-in Trivial File Transfer Protocol (TFTP) client
• Firmware upgrade via TFTP or HTTP
• Configuration upload/download via TFTP or HTTP
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events)
• SNMP trap for interface Link Up and Link Down notification
• Logging to remote syslog server
• Link Layer Discovery Protocol (LLDP) for easy network management
• Supports Ping function
• Reset button for system management
• 1 RS-232 male DB9 console interface for Switch basic management and setup
• User privilege control – admin, operator, viewer

Redundant Power System
• 100~240V AC / 48V DC Dual power redundant (Optional)
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply




Specifications



Model VDL-2420MR / VDL-2420MR48
Hardware Specification
VDSL Interface VDL-2420MR: 24-Port VDSL2 Line via 1 RJ-21 (Telco-50) connector

VDL-2420MR48: 24-Port POTS/Telephone via 1 RJ-21 (Telco-50) connectors
1000Mbps Copper Ports 2 10/100/1000Mbps RJ-45 Auto-Negotiation, Auto MDI/MDI-X
SFP / mini-GBIC Slots 2 1000Base-SX/LX/BX, shared with Port-25 ~ Port-26
Console 1 x RS-232 Serial Port (DB9, 57600, N, 8, 1)
Surge Protect 3KV
Switch Architecture Store-and-Forward
Switch Fabric 8.8Gbps / non-blocking
Switch Throughput 6.547Mpps @64Bytes
Address Table 8K entries
Share Data Buffer 512Kbytes
Maximum Frame Size 9K Bytes
Flow Control Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex

LED System: Power, SYS Status
Alert: FAN 1, FAN 2, Power 1, Power 2
VDSL: VDSL Link/Sync.
Gigabit Port: 1000 Link/Active, 100 Link/Active

Reset Button < 5 sec: System reboot
> 10 sec: Factory Default

Dimension (W x D x H) 440 x 300 x 88 mm, 2U height
Weight 6.4kg
Power Requirement AC Input
VC-2400MR: 100~240V AC, 50-60 Hz
VC-2400MR48: Optional AC Power module

DC Input
VC-2400MR: Optional DC Power module
VC-2400MR48: -48V DC; Range: 30V~60V
Power Consumption / Dissipation 130Watts maximum / 404 BTU/hr maximum
Standard Accessory  - 2-Meter Telco-50 Cable x 2
 - FAN Module x 1
 - 19” rack mount kit
VDSL2
VDSL2 Standard Comply with ITU-T G.993.2.
Supports provisioning the VDSL optional band (25K to 138K Hz) usage
ITU-T G.994.1: Handshake procedure of each DMT xDSL circuit
ITU-T G.997.2: Physical layer management of each DMT xDSL circuit
Encoding VDSL-DMT
VDSL2 Template Configurable Line Template
Configurable Alarm Template

VDSL2 Profile Selectable spectrum profile of
- 8a / 8b / 8c / 8d / 12a / 12b / 17a / 30a
Band Plan Selectable band plan for each VDSL line on a per port basis
Band plan A:
- Profile 998, Annex A of G.993.1; Optimized for symmetric services
Band plan B:
- Profile 997, Annex B of G.993.1 ; Optimized for asymmetric services

Rate Adaptation Manual
RaInit
Dynamics

Power Back-Off Downstream Power Back-Off (DPBO) PSD
Upstream Power Back-Off (UPBO) PSD

VDSL2 Features Selectable rate limit control
Selectable target SNR (signal to Noise Ratio) mode
POTS voices pass through

POTS Splitter Compliant with ETSI TS 101 952-1-1 option A for European
The splitter is passive element. Even the system is loss of power, the POTS service is still OK

Layer 2 Function
Management Interface Console, Telnet, Web Browser, SSL, SNMPv1 / v2c / v3
Gigabit Port Configuration Port disable / enable
Auto negotiation
10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable

Gigabit Port Status Display each port’s speed duplex mode, link status and Flow control status
Auto negotiation status, trunk status

Port Mirroring TX / RX / Both
1 to 1 monitor
Bandwidth Control Ingress / Egress rate limit control
Gigabit Port:
 • Allow to configure per 128Kbps
VDSL2 Port:
 • Allow to configure per 4Kbps

VLAN IEEE 802.1Q Tag-Based VLAN, up to 256 VLAN groups, out of 4041 VLAN IDs
Port-Based VLAN, up to 26 VLAN groups
GVRP, up to 128 dynamic VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE / Protected port) with two protected port groups
Supports Asymmetric VLAN membership configuration
Spanning Tree Protocol IEEE 802.1D Spanning Tree
IEEE 802.1s Multiple Spanning Tree
Up to 16 MST instances (0~15)
Link Aggregation Static Port Trunk
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
13 groups of 8-Port trunk support

QoS 4 priority queue
Traffic classification based on
 - Port priority
 - 802.1p priority
 - DSCP / TOS field in IP Packet
VoIP QoS by application protocol no.

IGMP Snooping IGMP (v1/v2) Snooping, up to 256 multicast Groups
Access Control List IP-Based Layer 3 / Layer 4 ACL
Up to 200 ACL rule entries
Security Port Security – supports per port MAC limit up to 64 entries
Static MAC and MAC Filter – up to 256 MAC address entries
Source IP / Source MAC Address and Port binding
IEEE 802.1X Port-Based Network Access Control – supporting authentication types:
 - EAP-MD5 / EAP-TLS / EAP-PEAP
SNMP MIBs RFC-1213 MIB-II
RFC-2863 Interface MIB
RFC-2665 EtherLike MIB
RFC-1493 Bridge MIB
RFC-2819 RMON MIB (Group 1, 2, 3,9)
RFC-2737 Entity MIB
RFC 5650 VDSL2 MIB

Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3:10Base-T
IEEE 802.3u:100Base-TX
IEEE 802.3z:1000Base- SX / LX
IEEE 802.3ab:1000Base-T
IEEE 802.3x:Flow Control and Back pressure
IEEE 802.3ad:Link Aggregation Control Protocol (LACP)
IEEE 802.1D:Spanning tree protocol
IEEE 802.1s:Multiple Spanning tree protocol
IEEE 802.1p:Class of service
IEEE 802.1Q:VLAN tagging
IEEE 802.1x:Port-based authentication network control
ITU-T:G.997.1
    G.993.2 VDSL2 (Profile 30a Support), Annex A
RFC 768:UDP
RFC 783:TFTP
RFC 791:IP
RFC 792:ICMP
RFC 854:Telnet
RFC 2068:HTTP
RFC 1112:IGMP version 1
RFC 1157:SNMPv1
RFC 1902:SNMPv2
RFC 2236:IGMP version 2
RFC 5424:Syslog
Cables • VDSL2: twisted-pair telephone wires (AWG24 or better) up to 1.4km
• 10/100Base-TX: 2-Pair UTP Cat.5, up to 100m (328ft)
• 1000Base-T: 4-pair UTP Cat.5E, up to 100m
• 1000Base-SX: 50/125΅m and 62.5/125΅m fiber-optic cable, up to 550m
• 1000Base-LX: 9/125΅m fiber optic cable, up to 10km 50/125΅m and 62.5/125΅m fiber-optic cable, up to 550m
Environment
Temperature 0~50 Degree C
Humidity 5~95% (non-condensing)
